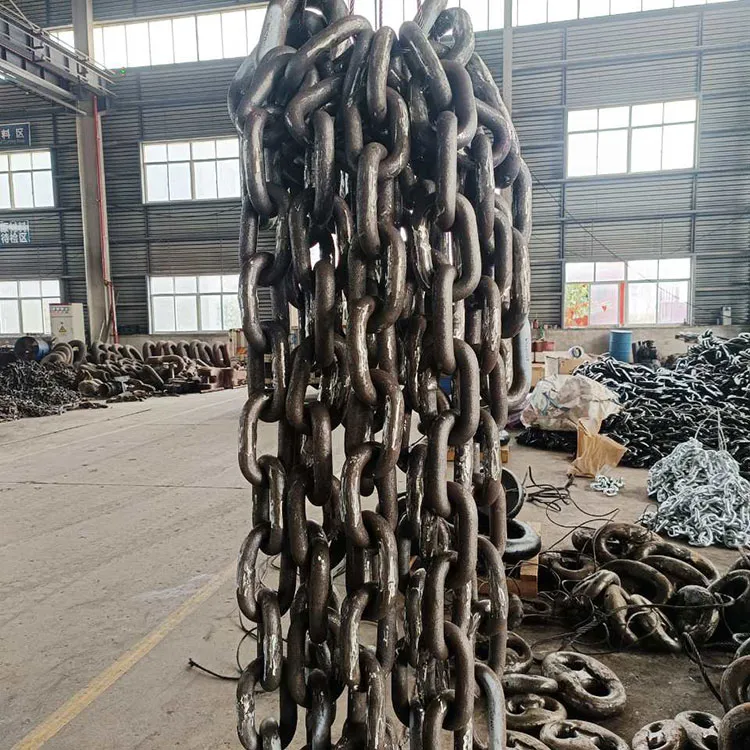

Proporcionamos todo tipo de cadenas para anclas marinas, con certificados CCS, LR, ABS, BV, IRS y otras sociedades de clasificación. Nuestras cadenas se dividen en cadena de ancla con eslabones, cadena de ancla sin espárragos, cadena de ancla de acero inoxidable y cadena de eslabones, etc.
especificación nominal d milímetros |
l10 | w7 | Rango | ||||||||
BM1 | BM2 | BM3 | BM4 |
kilogramos/m |
|||||||
ROTURA CARGA |
CARGA DE PRUEBA | ROTURA CARGA |
CARGA DE PRUEBA | ROTURA CARGA |
CARGA DE PRUEBA | ROTURA CARGA |
CARGA DE PRUEBA | ||||
6 | 36 | 22 | 13.3 | 6.6 | 18.6 | 9.3 | / | / | 0.72 | ||
7 | 42 | 25 | 18.1 | 9 | 25.2 | 12.6 | 0.98 | ||||
8 | 48 | 29 | 23.7 | 11.8 | 33 | 18.5 | 1.28 | ||||
9 | 54 | 32 | 30 | 14.9 | 41.8 | 20.9 | 1.62 | ||||
10 | 60 | 36 | 37 | 13.4 | 51.6 | 25.8 | 2 | ||||
11 | 66 | 40 | 44.7 | 22.6 | 62.4 | 31.2 | 2.42 | ||||
12.5 | 75 | 45 | 57.8 | 28.8 | 82.6 | 41.2 | 3.12 | ||||
14 | 84 | 50 | 69.9 | 34.8 | 101.9 | 51 | 3.92 | ||||
16 | 96 | 58 | 94.7 | 47.1 | 132.3 | 66.2 | 184.8 | 92.4 | 5.12 | ||
17.5 | 105 | 63 | 113.3 | 56.4 | 157.8 | 78.9 | 221.2 | 110.6 | 6.12 | ||
19 | 114 | 68 | 133.7 | 66.4 | 187.2 | 93.6 | 260.6 | 130.3 | 7.22 | ||
20.5 | 123 | 74 | 155.5 | 77.3 | 217.3 | 108.6 | 303.4 | 151.7 | 8.4 | ||
22 | 132 | 79 | 179.1 | 89.1 | 250.9 | 125.4 | 349.4 | 174.7 | 9.67 | ||
24 | 144 | 86 | 213.3 | 106 | 298.9 | 149.9 | 415.8 | 207.9 | 11.51 | ||
26 | 156 | 94 | 250.1 | 124.4 | 350.8 | 175.4 | 488 | 244 | 13.51 | ||
28 | 168 | 101 | 290.1 | 144.3 | 406.7 | 203.8 | 566 | 283 | 15.67 | ||
30 | 180 | 108 | 333 | 165.6 | 467.5 | 234.2 | 649.8 | 324.9 | 933 | 652 | 17.99 |
32 | 192 | 115 | 378.9 | 188.4 | 531.2 | 265.6 | 739.3 | 369.6 | 1057 | 739 | 20.47 |
34 | 204 | 122 | 427.7 | 212.7 | 599.8 | 299.9 | 834.6 | 417.3 | 1189 | 831 | 23.11 |
36 | 216 | 130 | 479.5 | 238.5 | 672.3 | 336.1 | 935.7 | 467.8 | 1327 | 928 | 25.9 |
38 | 228 | 137 | 534.3 | 265.7 | 748.7 | 374.4 | 1042.5 | 521.3 | 1473 | 1030 | 28.86 |
40 | 240 | 144 | 592 | 294.4 | 829.1 | 414.5 | 1155.2 | 577.6 | 1626 | 1136 | 31.98 |
42 | 252 | 151 | 652.7 | 324.6 | 915.3 | 457.7 | 1273.6 | 636.8 | 1786 | 1248 | 35.26 |
44 | 264 | 158 | 716.3 | 356.2 | 999.6 | 502.7 | 1397.8 | 698.9 | 1952 | 1364 | 38.7 |
46 | 276 | 166 | 782.9 | 389.3 | 1097.6 | 548.8 | 1527.8 | 763.9 | 2125 | 1485 | 42.3 |
48 | 288 | 173 | 852.5 | 423.9 | 1195.6 | 597.8 | 1663.5 | 831.7 | 2304 | 1610 | 46.05 |
50 | 300 | 180 | 926.1 | 460 | 1293.6 | 648.8 | 1805 | 902.5 | 2490 | 1740 | 49.97 |
52 | 312 | 177 | / | 1393.6 | 696.8 | 1944.5 | 972.2 | 2683 | 1875 | 54.05 | |
54 | 324 | 184 | 1496.8 | 748.4 | 2088.5 | 1044.3 | 2882 | 2014 | 58.29 | ||
56 | 336 | 191 | 1603.2 | 801.6 | 2237 | 1118.5 | 3086 | 2157 | 62.68 | ||
58 | 348 | 198 | 1712.8 | 856.4 | 2390 | 1195 | 3297 | 2304 | 67.24 | ||
60 | 360 | 204 | 1825.5 | 912.8 | 2547.2 | 1273.6 | 3514 | 2456 | 71.96 | ||
62 | 372 | 211 | 1941.3 | 970.7 | 2708.8 | 1354.4 | 3737 | 2612 | 76,84. | ||
64 | 384 | 218 | 2060.1 | 1030.1 | 2874.5 | 1437.3 | 3966 | 2771 | 81.87 | ||
66 | 396 | 225 | 2181.8 | 1090.9 | 3044.4 | 1522.2 | 4200 | 2935 | 87.07 | ||
68 | 408 | 232 | 2306.5 | 1153.3 | 3218.3 | 1609.2 | 4440 | 3103 | 92.43 | ||
70 | 420 | 238 | 2434 | 1217 | 3396.3 | 1698.2 | 4686 | 3274 | 97.94 | ||
73 | 438 | 248 | 2630.6 | 1315.3 | 3670.6 | 1835.3 | 5064 | 3539 | 106.52 | ||
76 | 456 | 239 | 2833.3 | 1416.7 | 3953.4 | 1976.7 | 5454 | 3812 | 115.45 | ||
78 | 468 | 266 | 2971.8 | 1485.9 | 4146.7 | 2073.3 | 5721 | 3998 | 121.61 | ||
81 | 486 | 276 | 3184.4 | 1592.2 | 4443.4 | 2221.7 | 6130 | 4284 | 131.14 | ||
84 | 504 | 286 | 3402.8 | 1701.4 | 4748 | 2374 | 3550 | 4578 | 141.04 | ||
87 | 522 | 296 | 3626.7 | 1813.3 | 5060.4 | 2530.2 | 6981 | 4879 | 151.29 | ||
90 | 540 | 306 | 3856 | 1928 | 5380.3 | 2690.2 | 7423 | 5187 | 161.91 |
